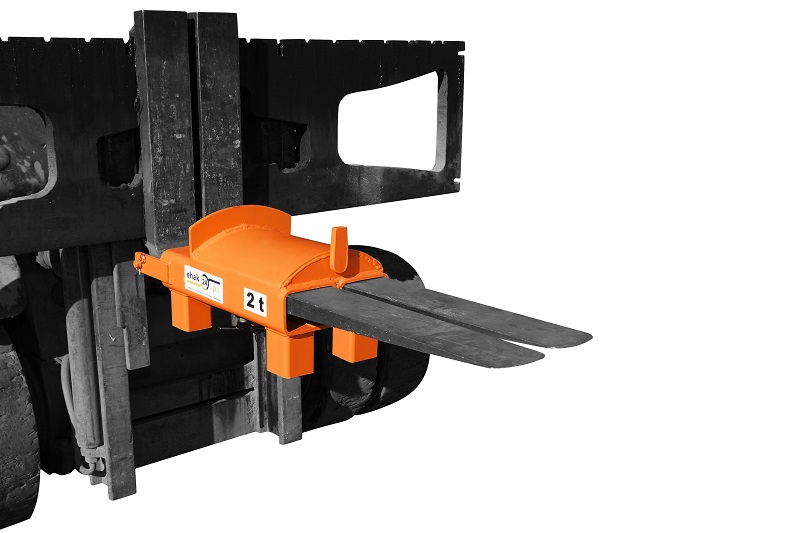

This special grab is designed to work with a forklift. It is intended for transporting coils using a forklift and is equipped with four additional legs for easy storage when not in use, as well as a pin at the end of the grab to prevent the load from slipping off. This device represents a specialized technical solution designed and manufactured for specific conditions.
Applications:
Parameters |
*Photo |
Range |
| Load capacity | 2 000 kg | as required |

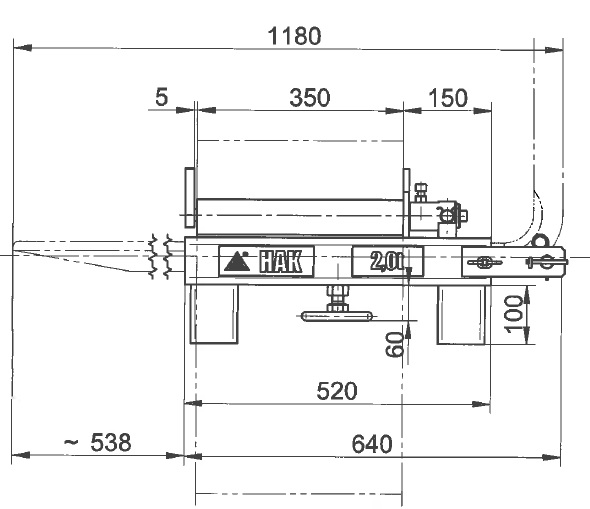

| Dimensions | 1180 x 250 x 52 mm | as required |
| Inner-outer coil diameter | 500 - 700 mm | as required |
| Coil width | max. 350 mm | as required |
| Purpose | transporting coils | - |
| Catalog number | ES151701 |
This special grab is designed to work with a forklift. It is intended for transporting coils using a forklift and is equipped with four additional legs for easy storage when not in use, as well as a pin at the end of the grab to prevent the load from slipping off. This device represents a specialized technical solution designed and manufactured for specific conditions.
Applications:
Technical description:
