Handle for pipe transport

This special handle is designed for mounting on a crane hook. The unique construction of the handle, which includes a counterweight, enables the safe transport of pipes and other similarly shaped loads. The straightforward design of the handle is equipped with grabs for precise positioning of the transported load. It is intended for suspension from a crane hook. This device represents a special technical solution, designed and manufactured for specific conditions.

Applications:

  • designed for the transport of concrete pipes weighing up to 900 kg.

Parameters

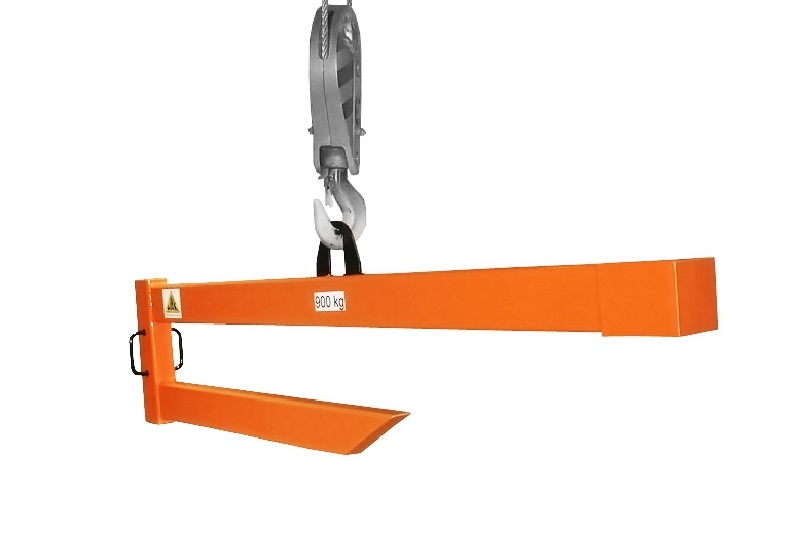

*Photo

Range

Load capacity 900 kg as required
Own weight 120 kg as required
Purpose transport of pipes as required
Catalog number WR074640  -



Handle for pipe transport

This special handle is designed for mounting on a crane hook. The unique construction of the handle, which includes a counterweight, enables the safe transport of pipes and other similarly shaped loads. The straightforward design of the handle is equipped with grabs for precise positioning of the transported load. It is intended for suspension from a crane hook. This device represents a special technical solution, designed and manufactured for specific conditions.

Applications:

  • designed for the transport of concrete pipes weighing up to 900 kg.

Technical Description:

  • parameters can be adjusted to meet the user's specific needs.

Send an offer request
