Hak

Pallet Transport Handle

Uchwyt specjalny przystosowany do współpracy z dźwignicą. Wyposażony w regulowany punkt podwieszenia oraz regulowany rozstaw wideł, tak aby maksymalnie dopasować go do transportowanej palety lub innego ładunku. Prezentowane urządzenie stanowi przykład specjalnego rozwiązania technicznego, zaprojektowanego i wykonanego pod jednostkowe uwarunkowania.

Zastosowanie:

  • uchwyt umożliwia podnoszenie i transport standardowych palet wraz z ładunkiem o masie do 5t.

Parameters

*Photo

Range

Load capacity 5 000 kg as required
Dimensions 1 300 x 1 700 mm as required
Fork spread 1 150 mm as required
Purpose pallet transport -
Catalog number MD181676

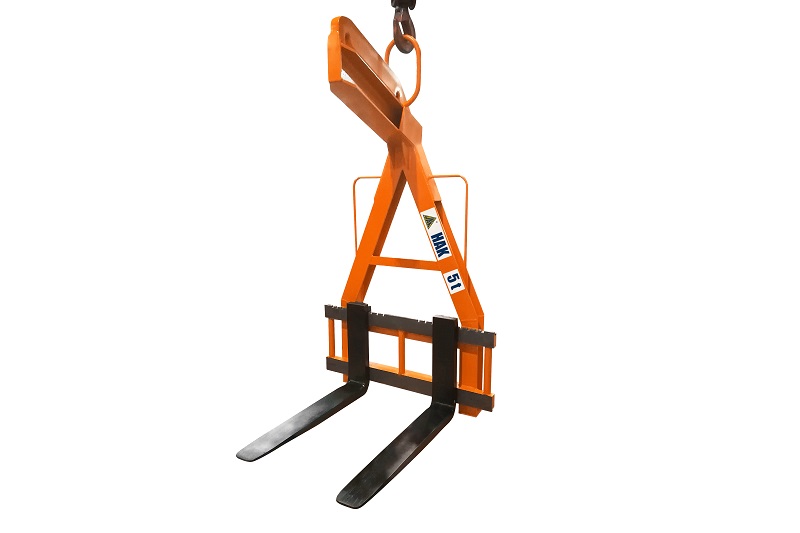

Pallet Transport Handle

The special handle is designed for use with hoists. It features an adjustable suspension point and adjustable fork spread to ensure optimal fit for the transported pallet or other load. This device represents a specialized technical solution, designed and manufactured for specific conditions.

Applications:

  • The handle allows for lifting and transporting standard pallets with a load capacity of up to 5 tons.

Technical Description:

  • The provided parameters can be adjusted to meet user needs.
