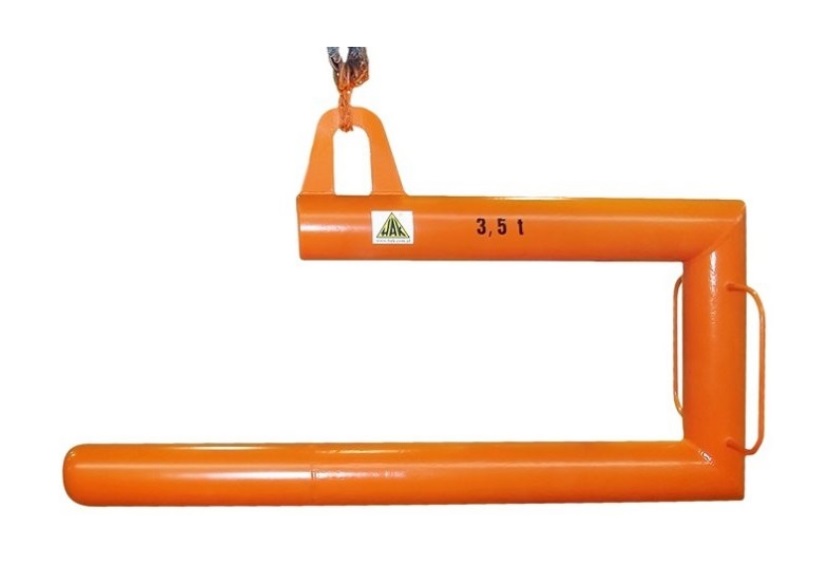

Handle for transporting pipes 3.5t

The handle is suitable for transporting coils of various sizes. It features a simple design with a grab for precise mounting on the load. The main shaft is specially extended relative to the entire structure to ensure better stabilization and safe operation for both the operator and their surroundings.

Applications:

  • lifting and transporting concrete and steel coils,
  • transporting rings, mandrels, and sleeves,
  • transporting spools and coils: wire, pipes, cables, and foil.

Parameters

*Photo

Range

Load capacity 3 500 kg as required
Dimensions 2 745 x 1 510 x 800 mm as required
Own weight 713 kg as required
Purpose transporting coils -
Catalog number SL062682



Handle for transporting pipes 3.5t

The handle is suitable for transporting coils of various sizes. It features a simple design with a grab for precise mounting on the load. The main shaft is specially extended relative to the entire structure to ensure better stabilization and safe operation for both the operator and their surroundings.

Applications:

  • lifting and transporting concrete and steel coils,
  • transporting rings, mandrels, and sleeves,
  • transporting spools and coils: wire, pipes, cables, and foil.

Technical Description:

  • coil axis: horizontal,
  • customizable parameters: parameters can be adjusted to meet user needs.
