Hak

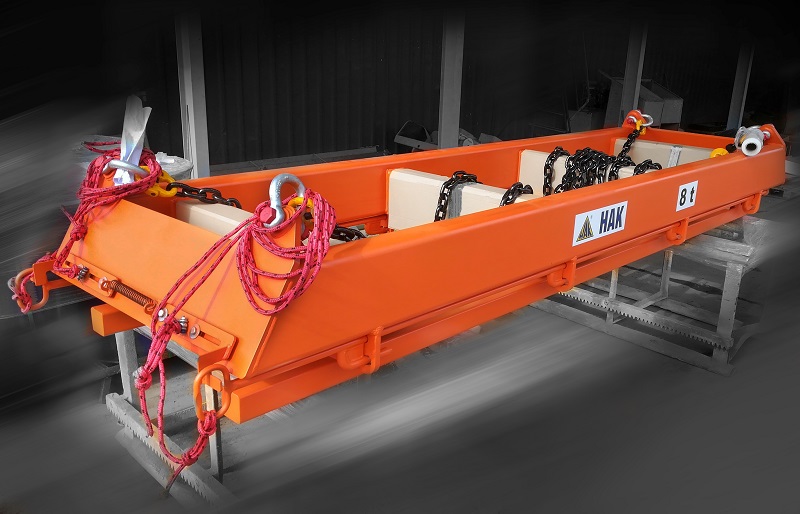

Frame Spreader

A special spreader designed for transporting gabions. Intended for the transport of specific loads—gabions. The spreader is built based on a frame structure and is equipped with a special return mechanism.

Application:

  • Transporting gabions.

Parameters

*Photo

Range

Load capacity 8 000 kg as required

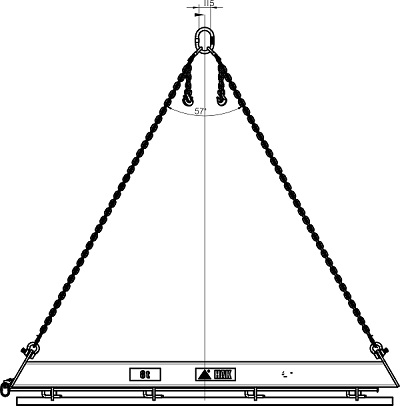

Dimensions with slings

4 000 mm x 2 000 mm

as required

Own weight

1 100 kg

as required

Catalog number ES212073

-



Frame Spreader

A special spreader designed for transporting gabions. Intended for the transport of specific loads—gabions. The spreader is built based on a frame structure and is equipped with a special return mechanism.

Application:

  • Transporting gabions.

Technical Description:

  • Frame-shaped spreader,
  • Attachments for suspending gabions underneath the spreader,
  • Spring return mechanism,
  • The provided parameters can be adjusted to meet the user's needs.

Send an offer request
