Magnetic crane Q=40t with lifting beam

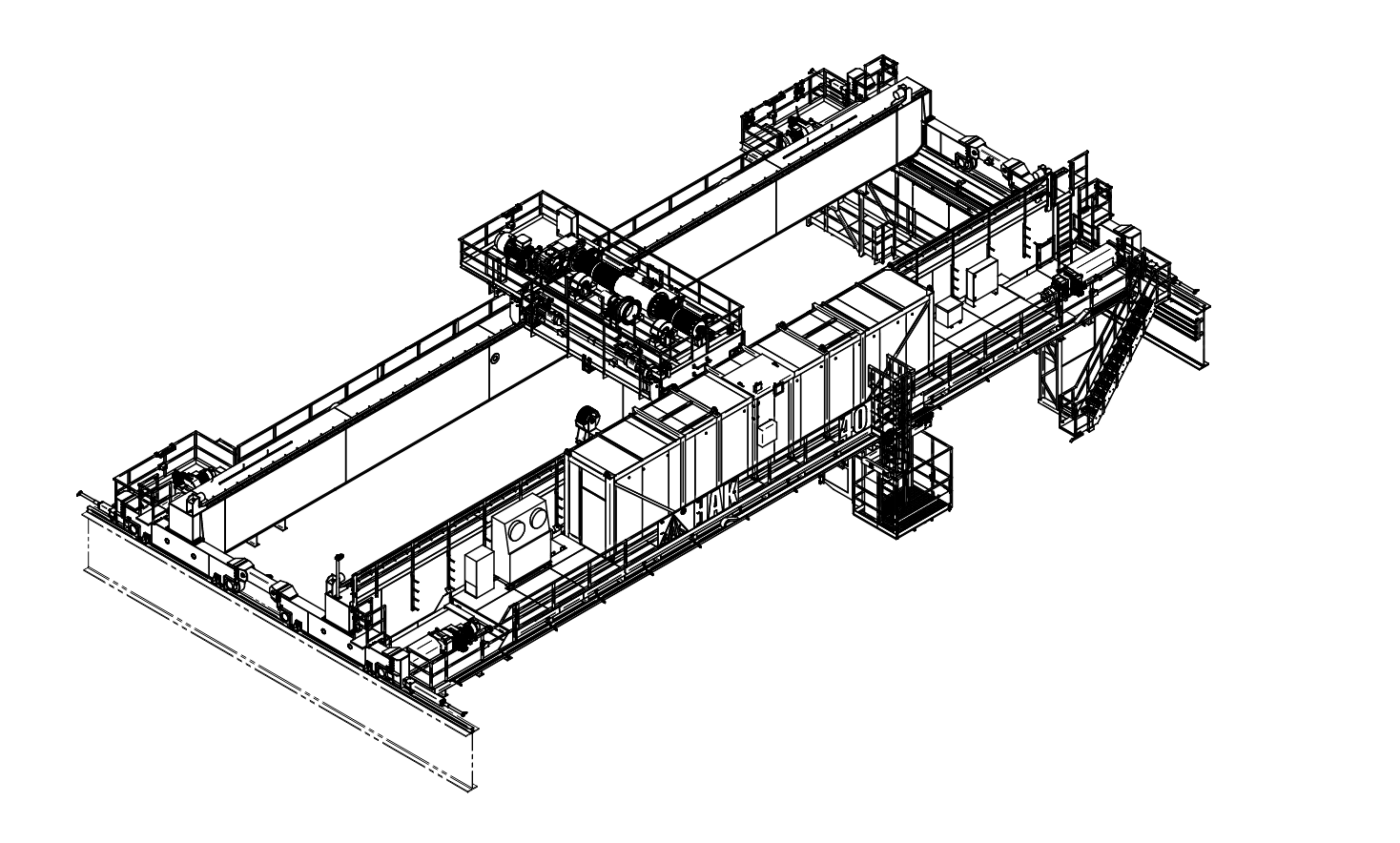

A double-girder overhead crane designed for transporting hot steel slabs using electromagnets suspended on a lifting beam.

Applications:

For transporting hot steel slabs with the following parameters:

• weight: 40t,
• length: min. 5 600 mm, max. 12 000 mm,
• width: min. 500 mm, max. 2 190 mm,
• temperature: max. 500°C.

Technical description:

• depending on the slab size, the crane can operate with one or two magnets simultaneously,
• the magnetization system allows continuous operation in GNP A8, and in the event of a power outage, it ensures the completion of transport operations for at least 20 minutes, enhancing operational safety,
• the crane is controlled from a movable, air-conditioned cabin, independent of the trolley, where the operator controls all working movements using joysticks and a control panel,
• in addition to standard safety systems, the crane is equipped with: an energy recovery system, motor protection and fault detection systems, remote diagnostics via VPN,
• the specified parameters can be customized to meet the user’s specific requirements.
