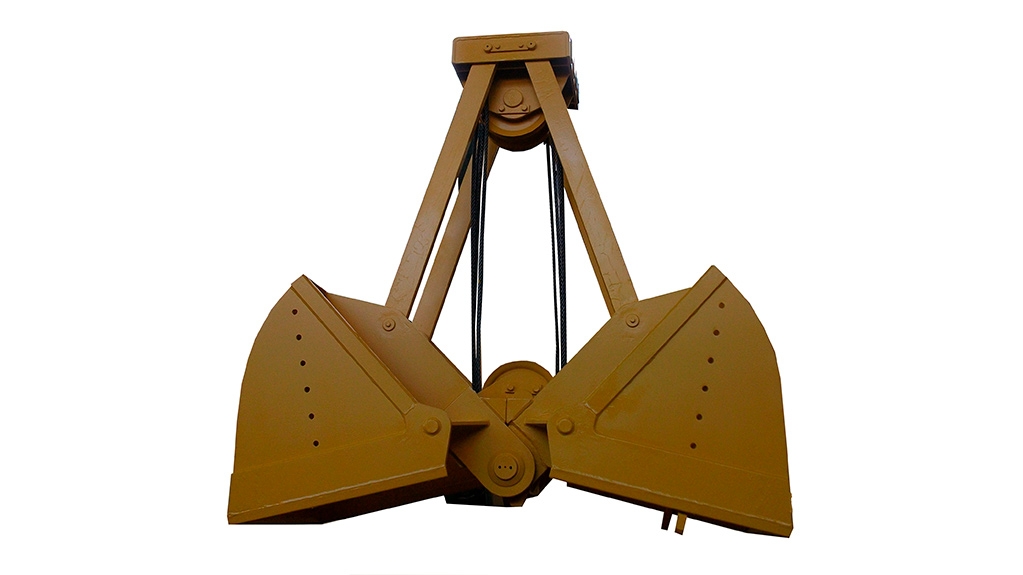

CM4-2.8 Four-Line Clamshell Mechanical Grab

Exceptionally high closing force and deep penetration ensure full loading.
Sturdy construction made from high-strength elastic steel.
Jaw edges protected against wear and abrasion (made from manganese steel).
Designed and manufactured in accordance with the FEM 1001/98 standard, part I.
CE marking

Technical data
Description
Similar products

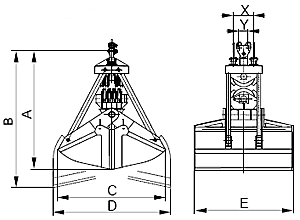

Model	Load capacity gradient 30^o	Line	Coupling Ø	Line Ø	Crane load	Weight	Dimensions mm
Model	m³	m	mm	mm	t	kg	A	B	C	D	E	X	Y
CM4-1000-2,8	1	4,1	355	16	5	1600	2440	2680	1670	1840	1450	380	160
CM4-1250-2,8	1,25	4,1	355	16	6,3	1900	2490	2695	1720	1935	1610	380	160
CM4-1500-2,8	1,5	6	450	22	8	2600	2790	2945	1805	2030	1735	480	220
CM4-2000-2,8	2	6	450	22	10	3200	2840	2960	1895	2030	1735	480	220
CM4-2500-2,8	2,5	9,7	560	26	12,5	4200	3135	3430	2085	2300	2145	595	280
CM4-3000-2,8	3	9,7	560	26	16	5300	3235	3460	2215	2490	2245	595	280
CM4-4000-2,8	4	9,7	560	26	20	6500	3435	3515	2560	2875	2345	595	280
CM4-5000-2,8	5	11,1	630	32	25	8200	3800	4270	2665	3220	2405	670	350
CM4-6000-2,8	6	11,1	630	32	32	10200	3900	4290	2845	3410	2555	670	350
CM4-8000-2,8	8	11,3	710	36	40	12600	4330	5040	3330	3700	2890	755	380

CM4-2.8 Four-Line Clamshell Mechanical Grab

For transporting granules of various diameters, stored at different angles, with varying bulk density.

Exceptionally high closing force and deep penetration ensure full loading.
Sturdy construction made from high-strength elastic steel.
Jaw edges protected against wear and abrasion (made from manganese steel).
Designed and manufactured in accordance with the FEM 1001/98 standard, part I.
CE marking.
