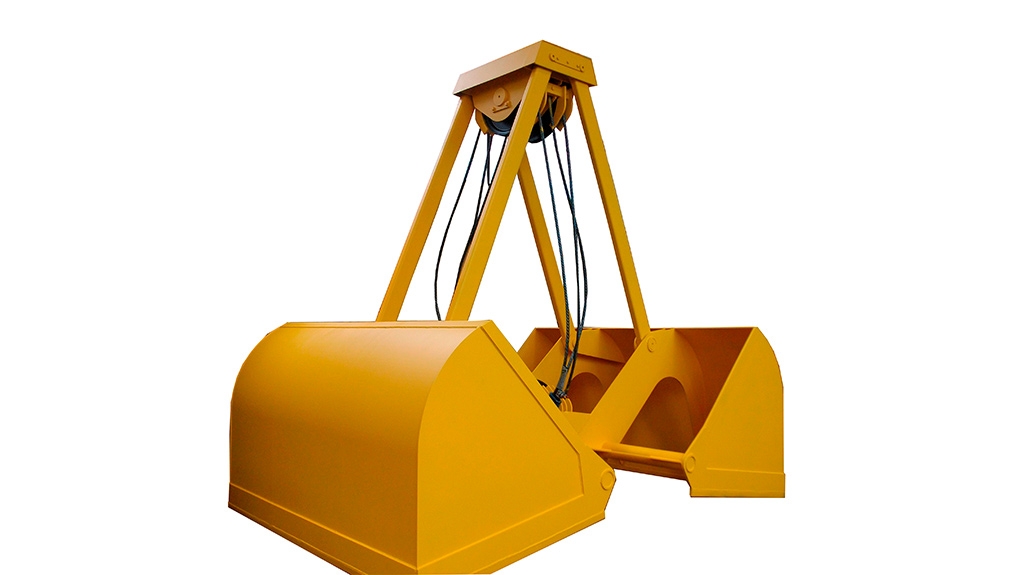

CM4-1.8 Four-Line Clamshell Mechanical Grab

Exceptionally high closing force and deep penetration ensure full loading.
Sturdy construction made from high-strength elastic steel.
Jaw edges protected against wear and abrasion (made from manganese steel).
Designed and manufactured in accordance with the FEM 1001/98 standard, part I.
CE marking.

Technical data
Description
Similar products

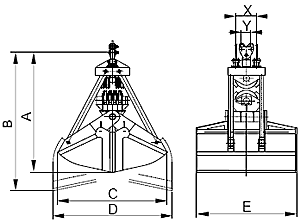

Model	Load capacity gradient 30^o	Line	Coupling Ø	Line Ø	Crane load	Weight	Dimensions mm
Model	m³	m	mm	mm	t	kg	A	B	C	D	E	X	Y
CM4-1600-1,8	1,6	4,1	355	16	6,3	1900	2525	2765	1895	2130	1660	380	160
CM4-2000-1,8	2	4,1	355	16	6,3	2200	2625	2795	2065	2320	1760	380	160
CM4-2500-1,8	2,5	4,9	450	22	8	2900	3040	3325	2240	2510	1885	480	220
CM4-3000-1,8	3	4,9	450	22	10	3200	3140	3350	2410	2700	1935	480	220
CM4-4000-1,8	4	8,8	560	26	12,5	4700	3575	4055	2685	3200	2005	595	280
CM4-5000-1,8	5	8,8	560	26	16	5200	3675	4080	2840	3400	2105	595	280
CM4-6000-1,8	6	8,8	560	26	20	6500	3775	4100	3005	3590	2255	595	280
CM4-8000-1,8	8	11,1	630	32	25	8200	4215	4840	3370	4030	2355	670	350
CM4-10000-1,8	10	11,1	630	32	32	9800	4315	4865	3545	4225	2805	670	350
CM4-12500-1,8	12,5	11,3	710	36	40	12500	4750	5140	3860	4520	2890	755	380

CM4-1.8 Four-Line Clamshell Mechanical Grab

For transporting granules of various diameters, stored at different angles, with varying bulk density.

Exceptionally high closing force and deep penetration ensure full loading.
Sturdy construction made from high-strength elastic steel.
Jaw edges protected against wear and abrasion (made from manganese steel).
Designed and manufactured in accordance with the FEM 1001/98 standard, part I.
CE marking.

Send an offer request
