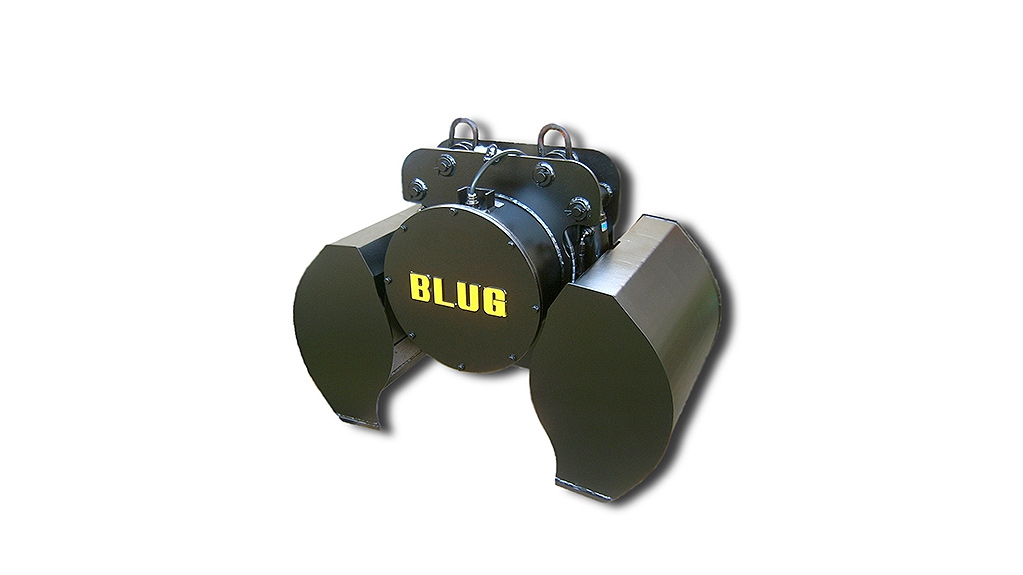

C2A-P1.8 Clamshell Electro-Hydraulic Grab "Butterfly"

  • Sturdy construction made from high-strength elastic steel.
  • Reduced height.
  • Jaw edges protected against wear and abrasion.
  • Surface protected with EPOXI-TAR (against rust and oxidation).
  • Internal anti-condensation system.
  • Designed and manufactured in accordance with the FEM 1001/98 standard, part I.
  • CE marking.



Model

Load

capacity

Motor Motor
40%
ED

Work.

pressure

Est.

closing

time

Open

 time

Crane

load

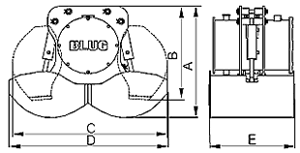

Weight Dimensions mm
m3 kW A bar s s t kg A B C D E
C2AP-150-1,8 0,15 4 8,95 100 6 4 1,25 520 1145 1040 960 1560 1000
C2AP-200-1,8 0,2 4 8,95 100 6 4 1,25 550 1145 1040 1200 1580 1000
C2A-300-1,8 0,3 4 8,95 100 6 4 1,5 600 1145 1040 1700 1625 1000
C2AP-400-1,8 0,4 5,5 11,5 120 6 4 1,75 650 1245 1040 1250 1785 1350
C2AP-500-1,8 0,5 5,5 11,5 120 6 4 2 725 1245 1040 1500 1810 1350
C2AP-600-1,8 0,6 5,5 11,5 120 6 4 2,5 800 1245 1040 1700 1820 1350



C2A-P1.8 Clamshell Electro-Hydraulic Grab "Butterfly"

  • Sturdy construction made from high-strength elastic steel.
  • Reduced height.
  • Jaw edges protected against wear and abrasion.
  • Surface protected with EPOXI-TAR (against rust and oxidation).
  • Internal anti-condensation system.
  • Designed and manufactured in accordance with the FEM 1001/98 standard, part I.
  • CE marking.
