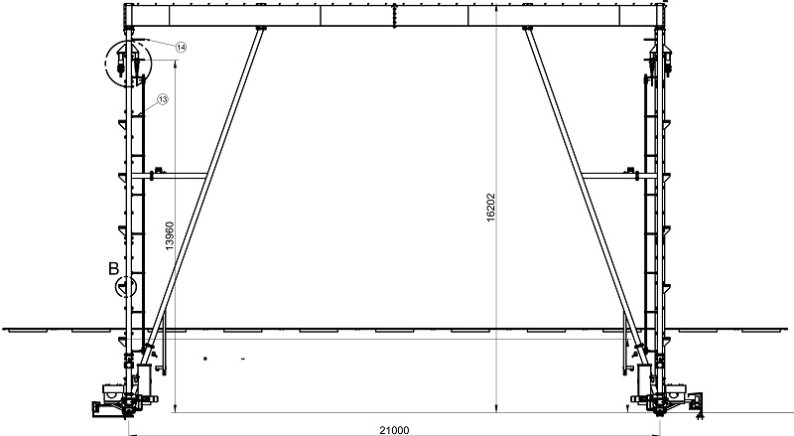

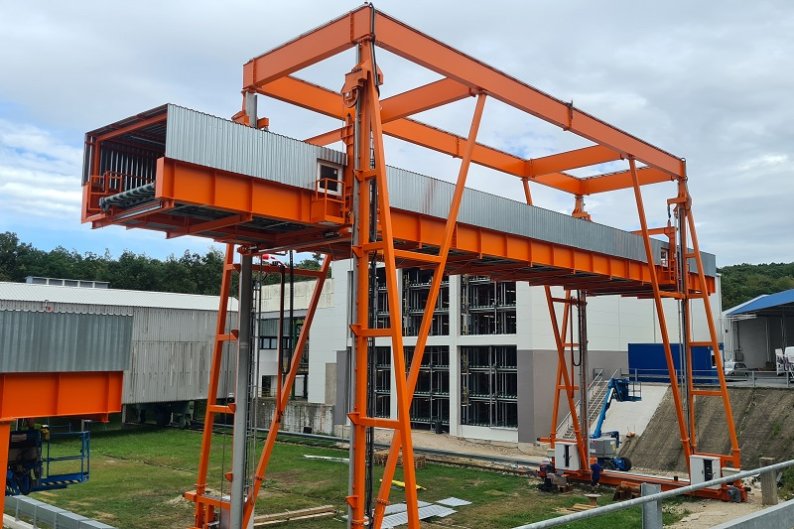

This transfer table is built on a gantry construction that moves along specialized rails. It features the ability to raise the entire device to a significant height, allowing it to easily bypass other loads stored underneath. It is designed to handle the transportation of foam blocks between different stages of the production process.
Application:
Parameters |
*Photo |
Range |
| Load capacity | 3 600 kg | as required |
| Span of rails | 21 000 mm | as required |
| Lifting height of the traverse with conveyor | 12 000 mm | as required |
| Lifting stroke | 11 000 mm | as required |
| GNP | A8 | as required |
| Lifting speed | Vp = 0 / 8 m/min (falownik) | as required |
| Travel speed | Vjs = 30 m/min (falownik) | as required |
| Lifting gear power | 4 x 8 kW (N=32 kW) | as required |
| Drive power | 16 kW | as required |
| Operating temperature | -20 / +40 oC | as required |
| Max. wind speed for operation | 80 km/h | as required |
| Automatic parking signal | 60 do 80 km/h (prędkości wiatru) | as required |
| Power supply voltage | AC 3x400V 50Hz | as required |
| Purpose | transport bloków pianki | - |
| Catalog number | KN171324 |
This transborder is built on a gantry construction that moves along specialized rails. It features the ability to raise the entire device to a significant height, allowing it to easily bypass other loads stored underneath. It is designed to handle the transportation of foam blocks between different stages of the production process.
