Transport Frame for Generator Modules

Transport Frame for Generator Modules

The presented device is an example of a specialized technical solution designed and manufactured for specific conditions. The given parameters can be customized to meet the user's needs.

Application: Frame for positioning generator modules during transport.

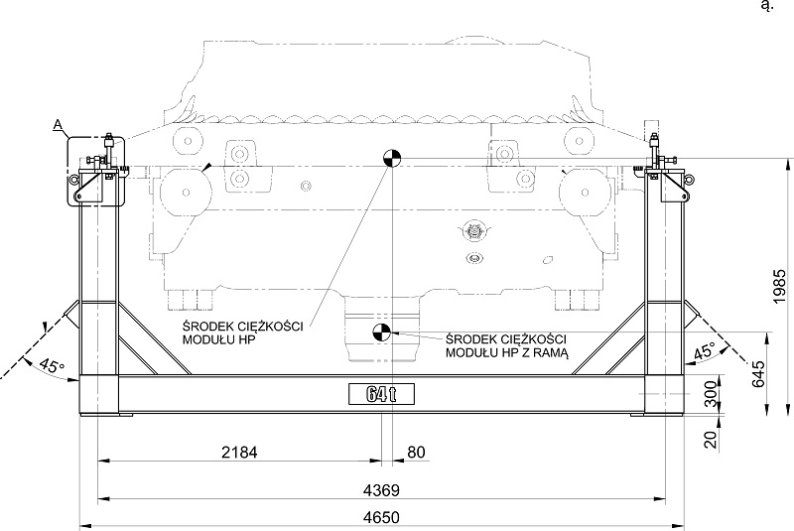

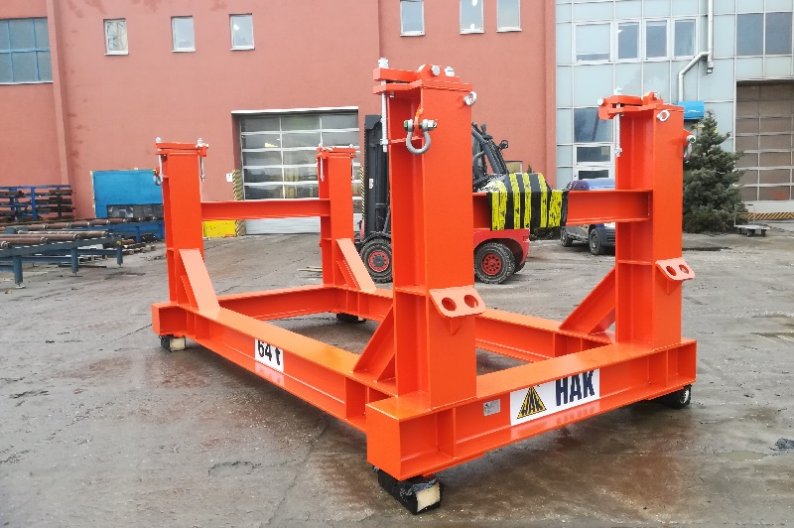

Construction: The design of the solution has been adapted to the dimensions of the transport vehicle and the load being transported. The frame is equipped with lifting hooks for use with a crane and four-leg slings.

Parameters:

• Load Capacity (DOR): 64,000 kg (as required)
• Length: 4,650 mm (as required)
• Width: 2,500 mm (as required)
• Height: 1,985 mm (as required)
• Catalog Number: GD172917
