Material and Personnel Transport Basket

  • Application:

    • Lifting and moving loads.
    • Transporting loads between different stages of the technological process.

    Technical Description:

    • Steel construction.
    • Transport using close-range transport equipment.
    • Maximum lifting capacity: 2 t.
    • Basket dimensions: 6 m long x 2 m wide.
    • The provided parameters can be adjusted to meet customer needs.

Parameters

*Photo

Range

Load capacity 2 t as required
Basket length 6 m as required
Basket width 2 m as required
Height 1 m as required
Catalog number ES240032 -



Kosz do transportu materiałów i ludzi

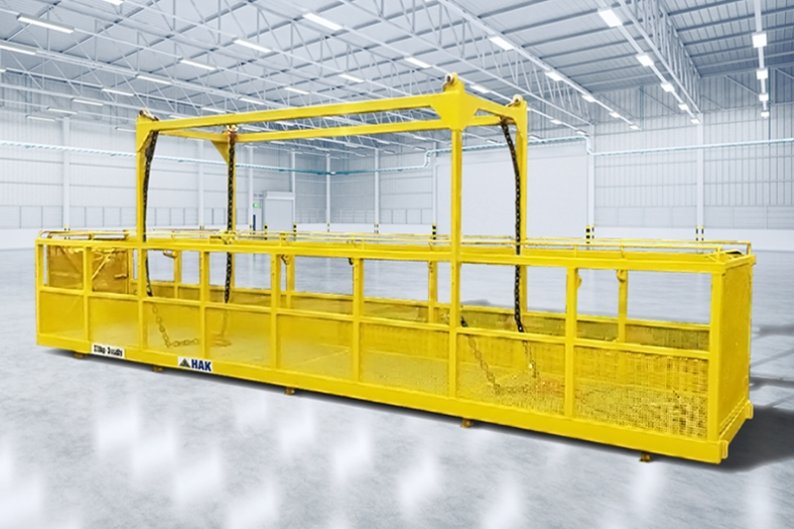

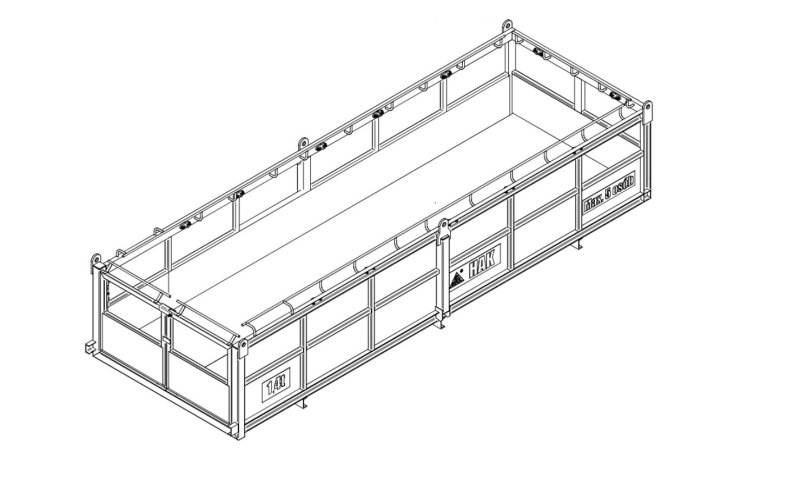

The basket for transporting personnel and materials is a robust steel structure designed for safe load transport using close-range transport equipment. The platform is adapted for suspension on a crane or tower crane. It is ideal for moving heavy loads. The basket is suspended from a crane hook using a six-leg chain sling (the sling is not part of the device). The load is placed on the basket floor. One of the shorter side walls of the frame is not permanently fixed. For load handling (loading and unloading the basket), the wall is designed as an opening gate.

The provided parameters can be adjusted to meet user requirements.
