Machine Housing Assembly Device

Machine Housing Assembly Device

The presented device is an example of a specialized technical solution designed and manufactured for specific conditions. The given parameters can be customized to meet the user’s needs.

Application:

The solution is designed for the assembly and disassembly of the grinding machine housing.

Construction:

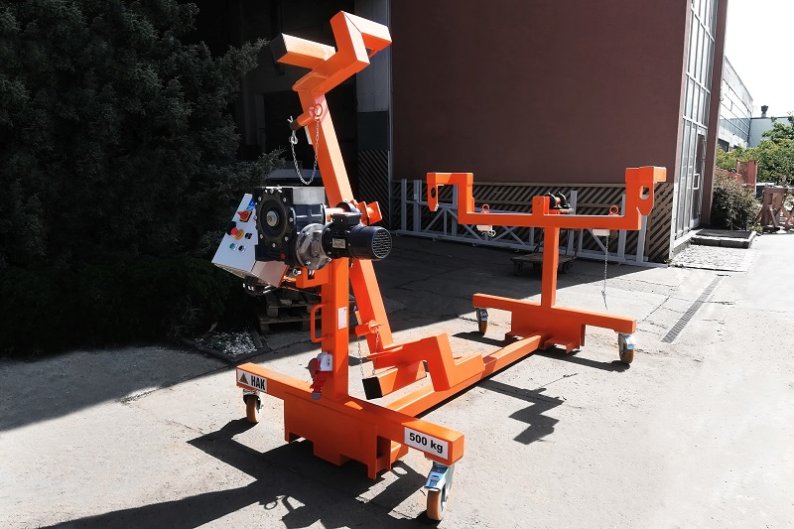

The device consists of:

• A chassis with a counterweight on swivel wheels.
• A rotary mechanism with a lifting function.
• A horizontal grip in the form of double forks with the ability to rotate around a vertical axis.

Operation:

During disassembly, the forks of the grip are inserted into the interior of the machine, the grip is locked within the housing, and the screws securing the machine housing are removed. The grip, along with the housing, is then lifted and moved backward. The assembly process is carried out in the reverse order.
