The presented device is an example of a specialized technical solution, designed and manufactured to meet specific conditions. The parameters can be adjusted according to the user’s needs.

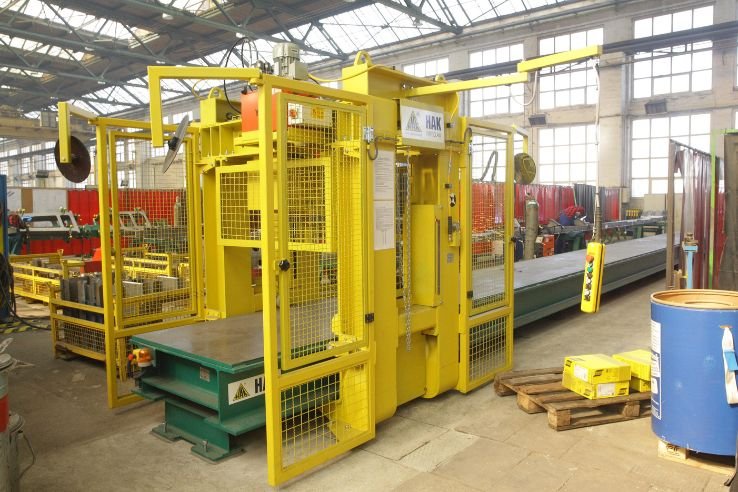

Design, manufacturing, delivery, installation, and commissioning of a hydraulic press for straightening longitudinal beams up to 20 meters in length after welding.
Parametres |
*Photo |
Range |
| Stamp pressure | 1000 kN | as required |
| Clearance between table and stamp |
550 mm |
as required |
| Length of work table |
23 000 mm |
as required |
| Width of work table | 1 116 mm | as required |
| Height of table |
600 mm |
as required |
| Stamp stroke | 500 mm | as required |
| Catalog number | WR102612 | - |
The presented device is an example of a specialized technical solution, designed and manufactured to meet specific conditions. The parameters can be adjusted according to the user’s needs.
Design, manufacturing, delivery, installation, and commissioning of a hydraulic press for straightening longitudinal beams up to 20 meters in length after welding.
