Lifting beam with Belt Rotator

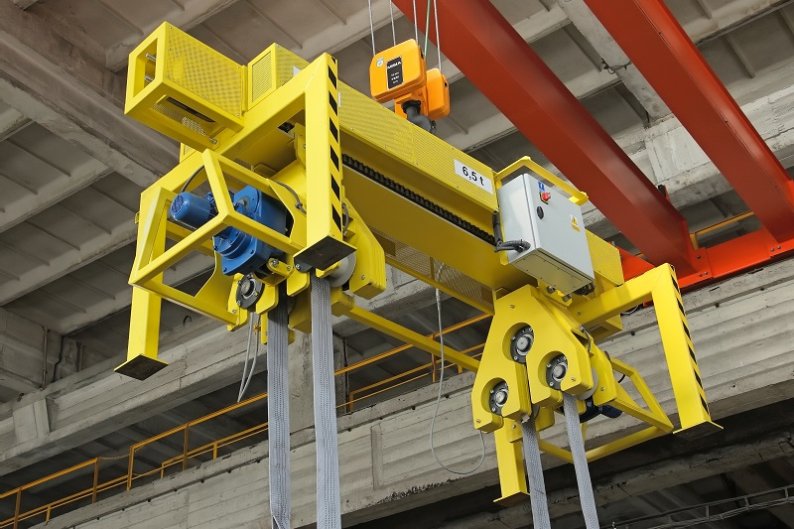

The lifting beam is designed to be suspended on a crane hook. It is equipped with a remotely controlled mechanism for rotating transported elements. Belt rotators mounted at both ends of the lifting beam allow for smooth and controlled rotation of the load around a horizontal axis. The presented device is an example of a special technical solution, designed and manufactured for specific conditions.

Application:

• The lifting beam is intended for rotating rectangular concrete elements.

Technical Description:

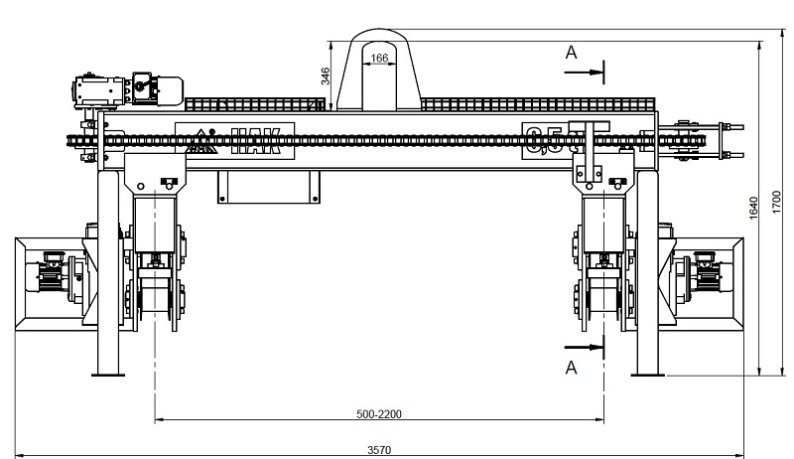

• The  lifting beam is equipped with belt rotators that provide gradual, stable, and safe rotation of rectangular elements with a length of 2900-665 mm and a width of up to 2200 mm.
• The rotator spacing is adjustable, and the rotational movement is electrically powered.
• The device's operation is controlled remotely via radio from the operator's position.
• The provided parameters can be adjusted to meet the user's specific needs.
