Hak
  • Double sheave long block hook
  • Double sheave long block hook

Double sheave long block hook

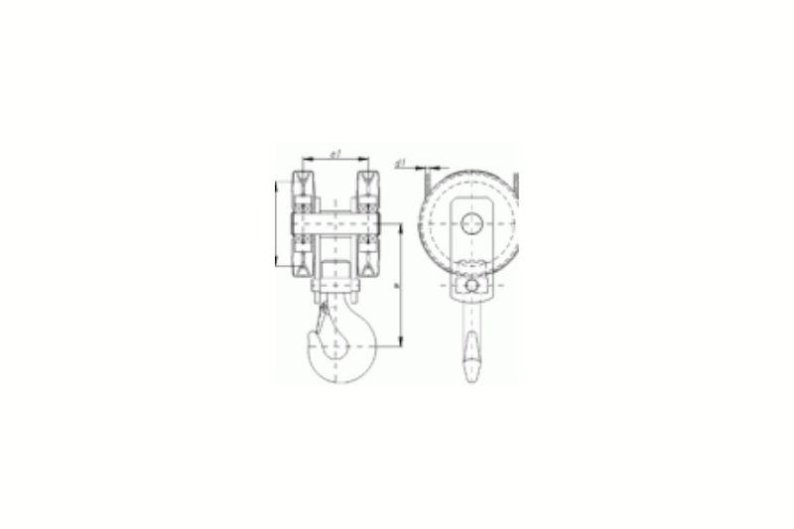

Nr 1,6 2,5 4 5 6 8 10 12 16
Group M4 M4 M4 M4 M4 M4 M4 M4 M4
lifting capacity 5 8 10 16 20 25 32 40 50
d1 9-10 13 13 16 20-21-22 20-21-22 24 26 29
d2 180 240 240 290 400 400 430 470 520
e1 135 165 185 210 245 270 300 355 380
W 280 335 350 405 510 535 580 655 750



A long hook block is a specialized lifting device consisting of a set of sheaves and a hook. Its elongated design allows for an increased lifting distance and facilitates handling of large-sized loads. The long hook block is characterized by a robust construction, high load resistance, and precise craftsmanship, ensuring safety and efficiency in challenging industrial conditions.

Application:

  • Construction, shipbuilding, metallurgy, etc.
  • Warehousing and Logistics
