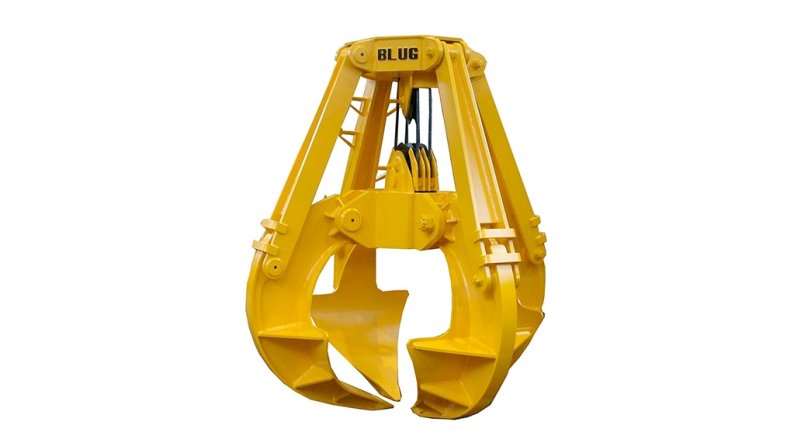

Special Mechanical Grab Model PMB-300

Application: For the transport of irregularly shaped rocks and stones during breakwater construction.

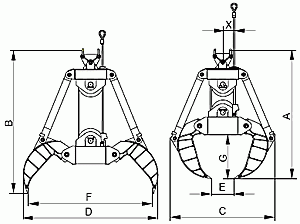

Model Load Capacity Rope Pulley Ø Rope Ø Crane Load Capacity Weight Dimensions mm
t m mm mm t kg A B C D E F G X
PMB-300-5 5 3,2 500 22 10 3100 3000 3300 2300 2940 400 2800 980 240
PMB-300-6 6 3,2 500 22 10 3300 3040 3360 2360 3020 420 2850 990 240
PMB-300-8 8 3,2 500 22 12 3700 3080 3420 2430 3080 450 2900 1010 240
PMB-300-10 10 3,9 630 32 16 5400 3690 4080 2860 3670 500 3400 1200 290
PMB-300-15 15 4,6 710 40 22 6600 3970 4390 3430 4350 750 4060 1420 380



Special Mechanical Grab Model PMB-300

Application: For the transport of irregularly shaped rocks and stones during breakwater construction.

  • Specially shaped jaws,
  • Special penetration teeth made of wear-resistant manganese steel,
  • Full loading capacity due to maximum penetration force,
  • Ideal balance between load capacity and own weight,
  • Solid construction made of high-strength spring steel,
  • Designed and manufactured according to FEM 1001/98 Part I,
  • CE marking.
