Grab for paper bale transport

The grab is well-suited for the transportation of bales and rolls of various materials. The expanding arms adapt precisely to the transported bales. When the grab is at rest or when lifting without a load, the arms can be locked to prevent expansion using a special locking element visible in the photo.

Applications:

  • lifting and transporting paper bales,
  • lifting and transporting rolls of materials wound onto a paper tube or core,
  • transporting hoops, gaskets, and sleeves.

Parameters

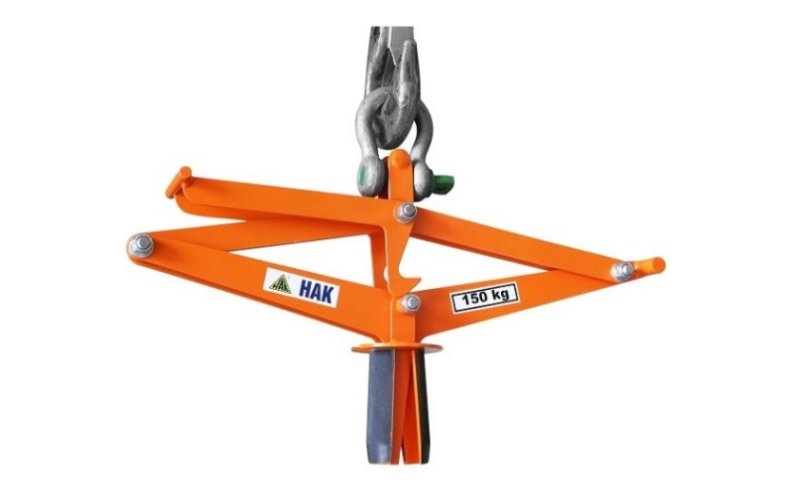

*Photo

Range

Load capacity 150 kg as reuqired

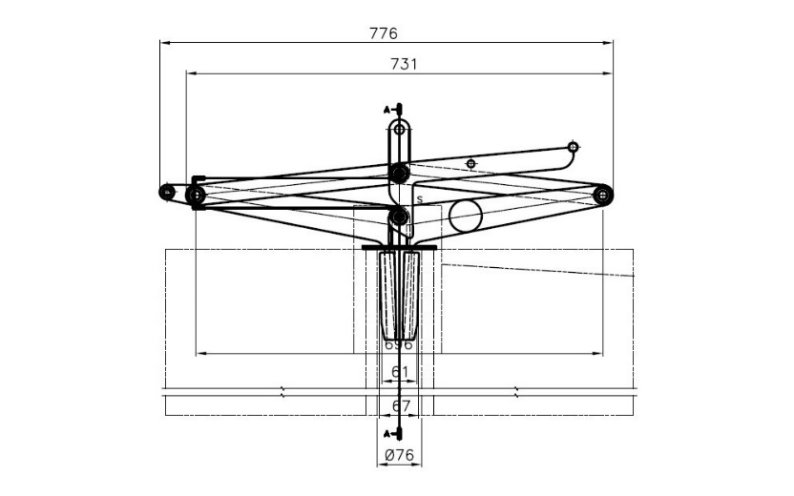

Dimensions 775 x 150 mm as required
Own weight 7 kg as required
Purpose transport paper bales -
Catalog number GL111991



Grab for paper bale transport

The grab is well-suited for the transportation of bales and rolls of various materials. The expanding arms adapt precisely to the transported bales. When the grab is at rest or when lifting without a load, the arms can be locked to prevent expansion using a special locking element visible in the photo.

Applications:

  • lifting and transporting paper bales,
  • lifting and transporting rolls of materials wound onto a paper tube or core,
  • transporting hoops, gaskets, and sleeves.

Technical Description:

  • load axis: vertical,
  • the specified parameters can be adjusted to meet user requirements.

Send an offer request
