Attachment for Transporting Synthetic Fibers

Attachment for Transporting Synthetic Fibers

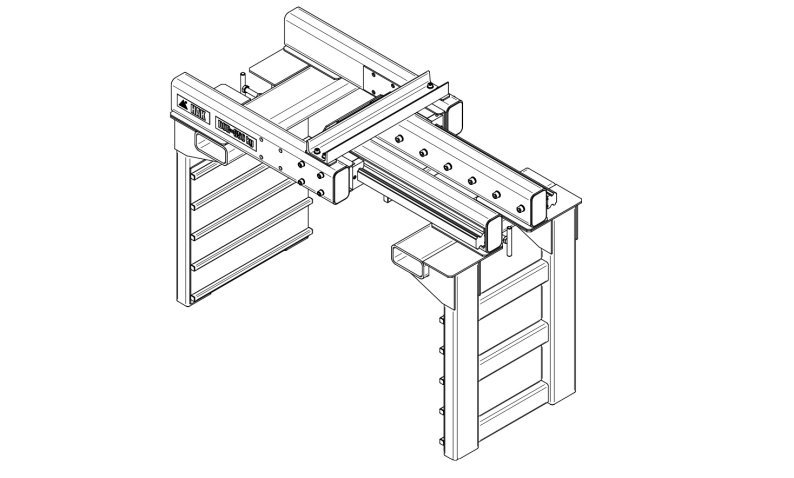

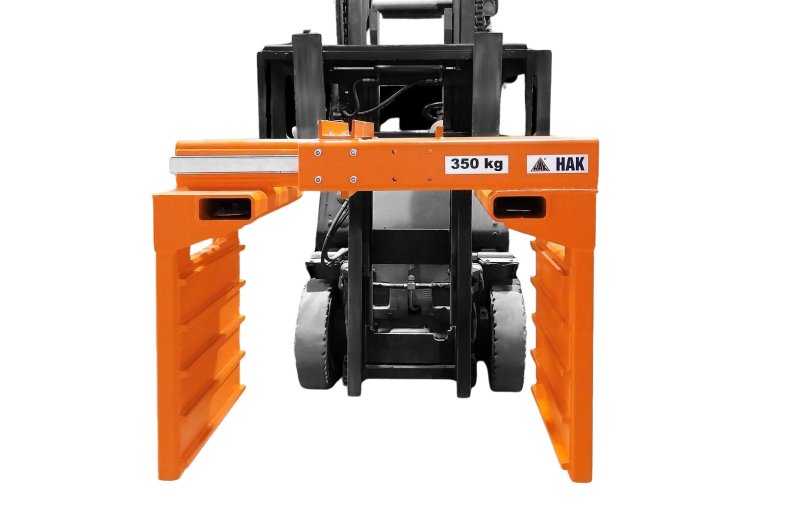

An attachment designed for transporting synthetic fibers using a forklift. The adjustable frame allows for the adaptation of the pocket spacing to fit the forklift tines. It can transport several blocks simultaneously, with a total weight not exceeding 350 kg.

Applications:

• Lifting and moving cubic blocks of deformable materials.

Technical Description:

• Designed for use with forklifts equipped with a fork positioner (with hydraulic adjustment capability and required force).
• Capable of handling elements that slightly change dimensions as well as those with fixed outline geometry.
• Steel construction.
• Equipped with linear bearings for smooth movement of the load-holding surface.
• Intended for blocks with approximate dimensions of 1000x600x1000 mm.
• Suitable for industrial environments (production halls), excluding areas with alkali fumes, acids, or explosive gases.
• Parameters can be adjusted to meet user requirements.
