Attachment for Transporting Metal Sheets

Attachment for Transporting Metal Sheets

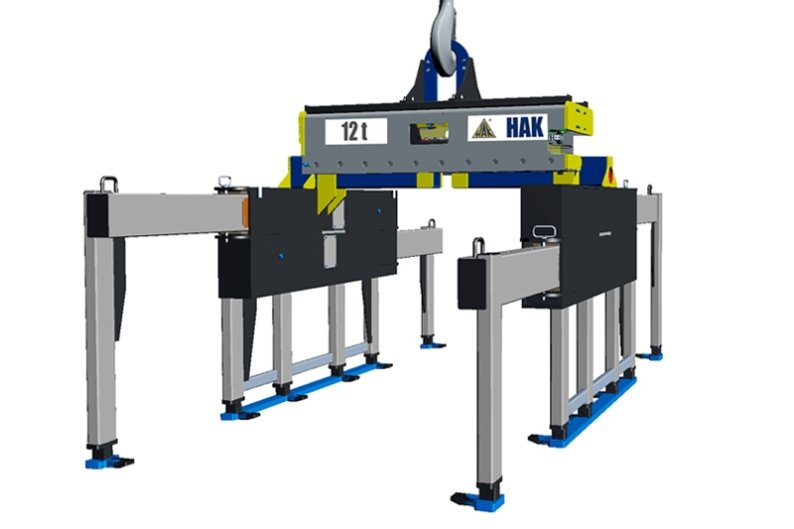

The attachment is designed for transporting metal sheet bundles of various sizes. This automated device allows for the handling of heavy loads in the form of plates and sheets, including bundled ones. It features a manual adjustment for arm spacing by releasing locking pins located on the arms.

Applications:

• Transport of metal sheet bundles
• Transport of flat, rectangular loads

Technical Description:

• The attachment includes both fixed and extendable arms
• Minimum and maximum arm spacing width: 500 - 2,390 mm
• Electric adjustment of arm spacing
• Minimum and maximum arm extension length: 920 - 5,060 mm
• Manual adjustment of arm extension
• Ability to transport sheet bundles with a width of: 500 - 2,000 mm
• Ability to transport sheet bundles with a length of: 1,500 - 6,000 mm
• Control method: Radio control
• Attachment adapted for use with a crane hook
• Parameters can be adjusted to meet user needs
