Suspension cranes are devices mounted directly to the roof structure of halls and buildings. Due to their design, they have a slightly lower load capacity, achieved through compact wire rope or chain hoists.
Applications:
Parameter |
Range |
| Load capacity | up to 25t |
| Span |
as per requirements |
| Lifting height |
as per requirements |
| Lifting speed |
as per requirements |
| Trolley travel speed |
as per requirements |
| Crane travel speed | as per requirements |
| Control |
as per requirements |
| Duty class (GNP) | as per requirements |
| Purpose |
as per requirements |
| Catalog number |
SHP |
The table provides the main parameters that need to be provided to prepare a preliminary offer for a crane. These parameters can be adjusted to the customer's needs.
Suspension cranes are devices mounted directly to the roof structure of halls and buildings. Due to their design, they have a slightly lower load capacity, achieved through compact wire rope or chain hoists.
Applications:
Suspension overhead cranes are most commonly used where other types of cranes cannot be applied due to the low height of the hall, or where there is a need to maximize the space under the crane.

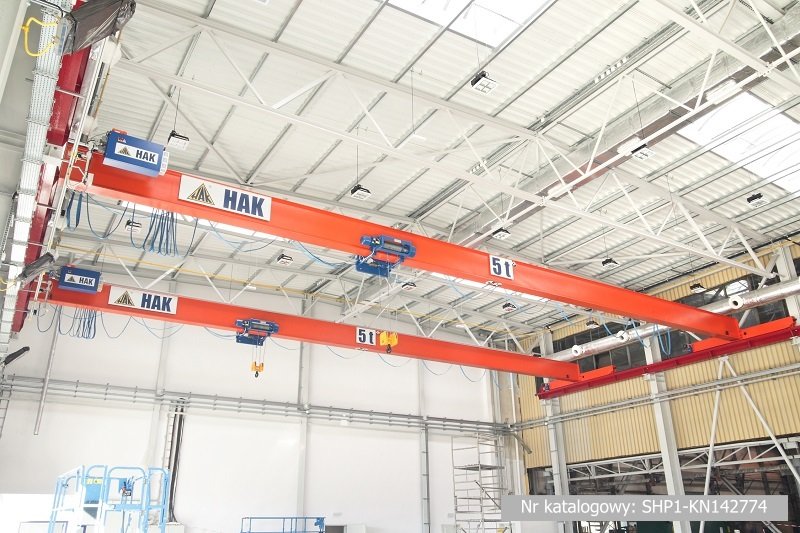

Suspension cranes usually have a single-girder construction, with the bridge mounted on end trucks equipped with trolleys. They move along a track suspended from the hall’s roof structure or mounted on a specially designed framework.
HAK manufactures single-girder suspension cranes with a load capacity of up to 25 tons and a span of up to 17.5 meters. We also produce double-girder cranes with a higher load capacity but a smaller span.
