Industrial crane for laying rope

Industrial crane for laying rope

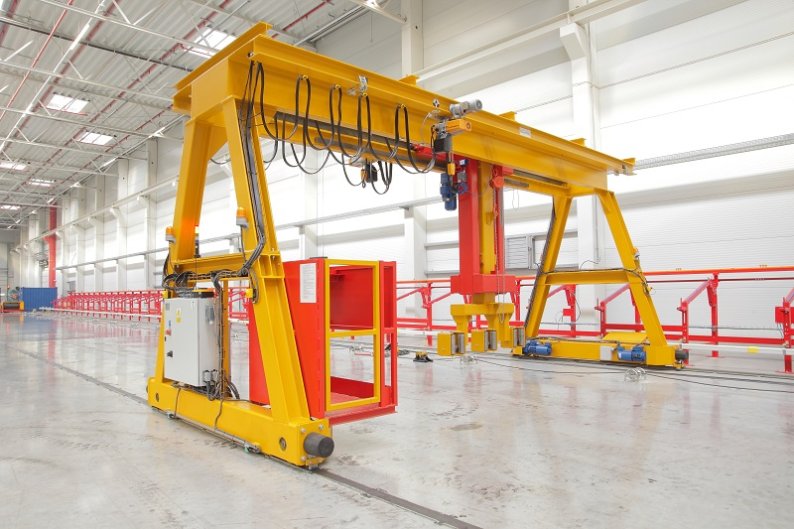

A small, compact gantry crane equipped with a movable column ending in a roller mechanism designed for moving rope. Thanks to the hoist structure of the column, the roller panel can operate at different heights, and additional wire hoists provide versatile functionality. The crane is remotely controlled.

Applications:

• managing processes that require laying and coiling ropes, wires, or cables,
• transporting loads within the crane’s working area.

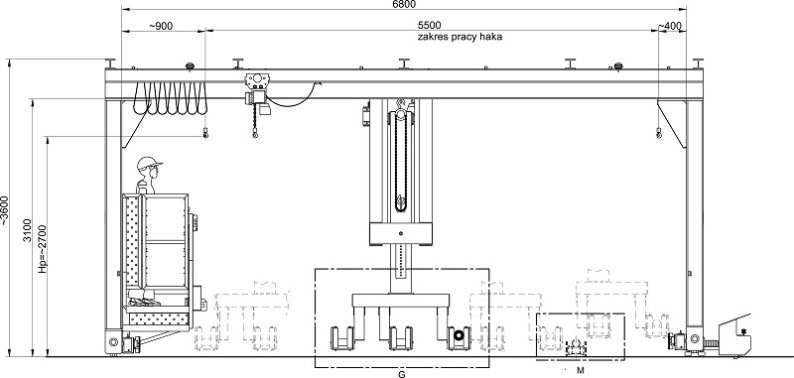

Technical Description:

• the crane is designed as a mobile steel structure,
• the device is equipped with a movable column with rollers for moving ropes,
• the roller panel of the column is designed with adjustable height positioning of the rollers,
• the upper horizontal beam is equipped with two movable hoists, each with a load capacity of 500 kg,
• the device is operated from a control panel located on a working platform on the crane,
• additional control via remote radio control,
• powered by a cable reel,
• smooth speed control,
• the specified parameters can be tailored to meet the user’s needs.
