Parameter
|
Range
|
| Load capacity |
up to 20t |
| Span |
as per requirements
|
| Lifing height |
as per requirements
|
| Lifting speed |
as per requirements
|
| Trolley travel speed |
as per requirements
|
| Crane travel speed |
as per requirements |
| Control |
as per requirements
|
Duty class (GNP)
|
as per requirements |
Purpose
|
as per requirements |
Catalog number
|
SHPB
|
The table provides the main parameters that need to be provided to prepare a preliminary offer for a crane, and these parameters can be adjusted to the customer's needs.

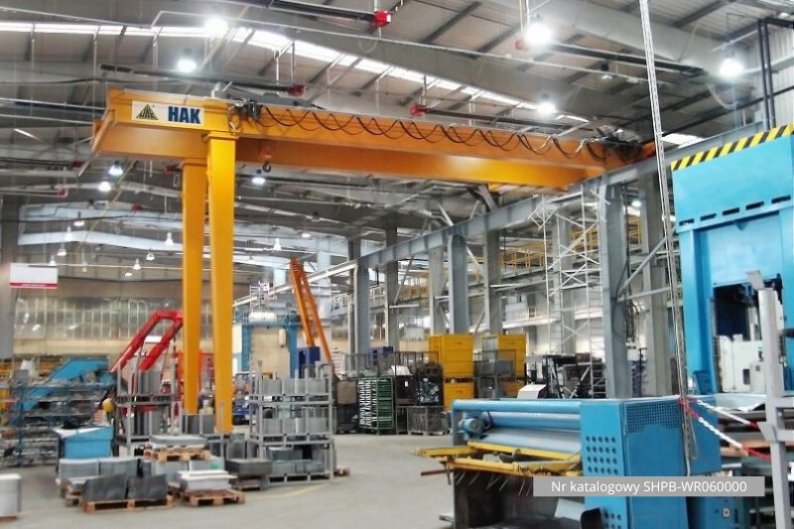

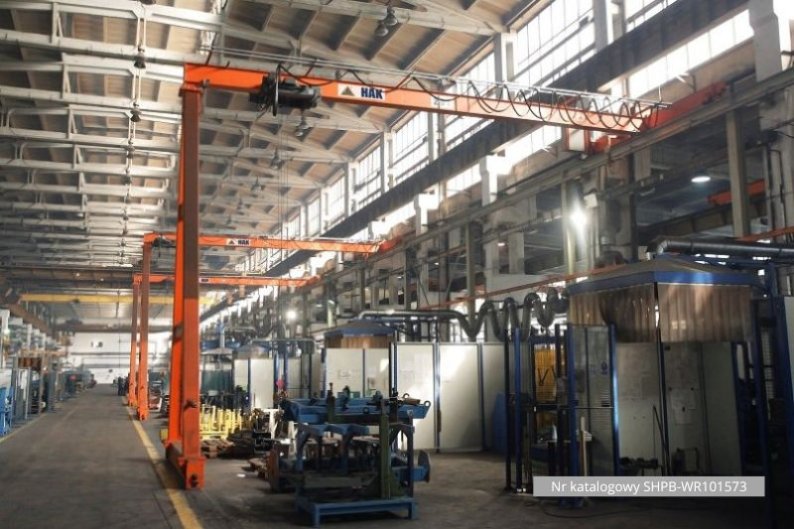

Semi-gantry cranes
They are a variation of gantry cranes—in their design, the bridge is supported on one side by a runway mounted on the wall or a steel structure of the hall. They are characterized by high technical capabilities and versatility of applications.
Applications:
- Transporting loads in areas where the use of overhead or gantry cranes is not feasible,
- Transporting loads both outside and inside industrial facilities, utilizing the hall wall for support,
- Moving loads in various environmental conditions.
Semi-gantry cranes are most commonly used inside industrial halls. Their distinctive feature is that one side of the crane bridge is supported by a side support moving along a runway on the ground, while the other side is supported by an end truck on a runway mounted on the hall structure. They are typically used where transport takes place along one side of the hall bay. We design and manufacture semi-gantry cranes tailored to specific applications and working conditions. Our devices are equipped with advanced technical solutions for drives and control systems. HAK also produces crane runways with an innovative flexible rail mounting system dedicated to semi-gantry cranes.
We also manufacture special versions of semi-gantry cranes, customized for specific production and transport processes across various industries.
