Welded Clamp 1216/21

Welded Clamp 1216/21

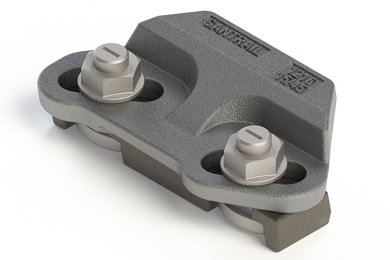

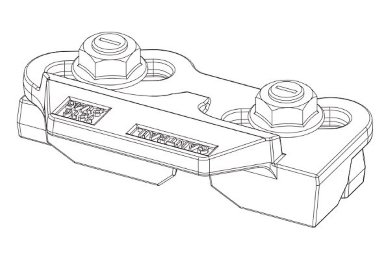

The adjustable Gantrail clamp 1216/21 is designed for securing crane runways in applications requiring maximum strength. It can withstand a lateral rail load of 210 kN (21.4 tons), achieved through a double contact surface. The clamp's low profile allows for use with cranes equipped with guide rollers.

Technical Description:

• Maximum lateral load: 210 kN;
• Horizontal adjustment range: 15 mm;
• Double contact surface between the clamp and rail allows for higher lateral loads;
• New spacer mounting prevents migration;
• The clamp base is welded to the support structure, no access from underneath is required;
• The two parts of the clamp are connected and locked with a grade 10.9 bolt;
• Vulcanized rubber ensures controlled rail pressure.
