Screw terminal 7120/10

Screw terminal 7120/10

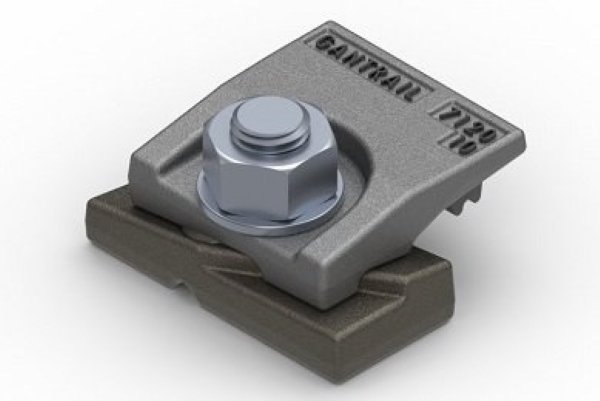

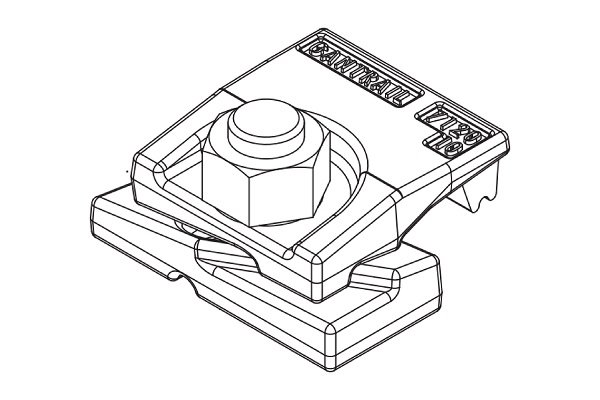

The adjustable terminal 7120/10 Gantrail is designed for securing rail tracks on narrow supports in applications requiring maximum strength. It withstands a lateral load of 75 kN (7,6 t). The low-profile terminal allows it to be used with hoists equipped with guide rollers.

Technical Description:

• max lateral load for bolt 8.8: 125 kN; for bolt 10.9: 100 kN,
• tightening torque for bolt 8.8: 390 Nm; for bolt 10.9: 600 Nm,
• proven design successfully used worldwide for many years,
• the terminal is screwed to the supporting structure,
• the two main parts of the terminal are locked together after tightening the nut.
