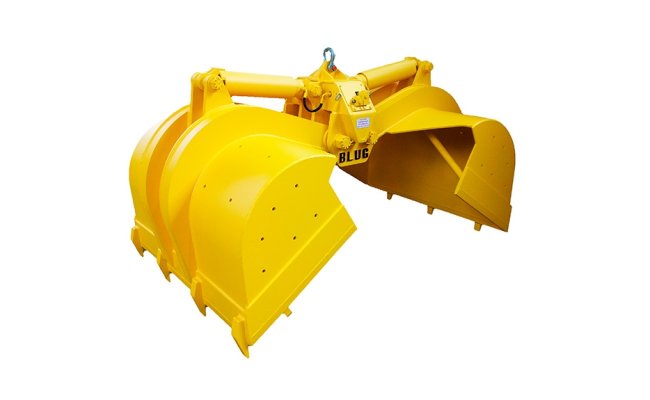

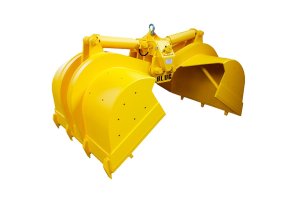

CNAH-2.8 Clamshell Hydraulic Grab

Application: For transporting stones, gravel, sand, silt, and waste during drainage work. Bulk density up to 2.8 t/m³.

  • Designed for transporting granules of various diameters, stored at different angles, with varying bulk density.
  • Exceptionally high closing force and deep penetration ensure full loading.
  • Can operate at any angle within a ±60° range.
  • Sturdy construction made from high-strength elastic steel.
Model Nośn. Ilość
szczęk
Ciśn.
rob.
Udźwig
suwnicy
Masa Wymiary mm
m3 bar t kg A B C D E
CNAH-250-2,8 0,25 2 250 2,5 1040 2170 1600 1490 1960 420
CNAH-400-2,8 0,4 2 250 2,5 1100 2170 1600 1490 1960 610
CNAH-550-2,8 0,55 2 250 3,2 1180 2170 1600 1490 1960 800
CNAH-650-2,8 0,65 2 250 3,2 1250 2200 1620 1510 1980 1000
CNAH-800-2,8 0,8 2 250 4 1320 2200 1620 1510 1980 2000



Czerpak hydrauliczny dwułupinowy - CNAH-2,8

Application: For transporting stones, gravel, sand, silt, and waste during drainage work. Bulk density up to 2.8 t/m³.

  • Designed for transporting granules of various diameters, stored at different angles, with varying bulk density.
  • Exceptionally high closing force and deep penetration ensure full loading.
  • Can operate at any angle within a ±60° range.
  • Sturdy construction made from high-strength elastic steel.

Send an offer request
