Rotary Manipulator for Coil Transport

The device is designed for efficient, safe, and effective transport of loads in the form of coils in production and storage processes across various industries.

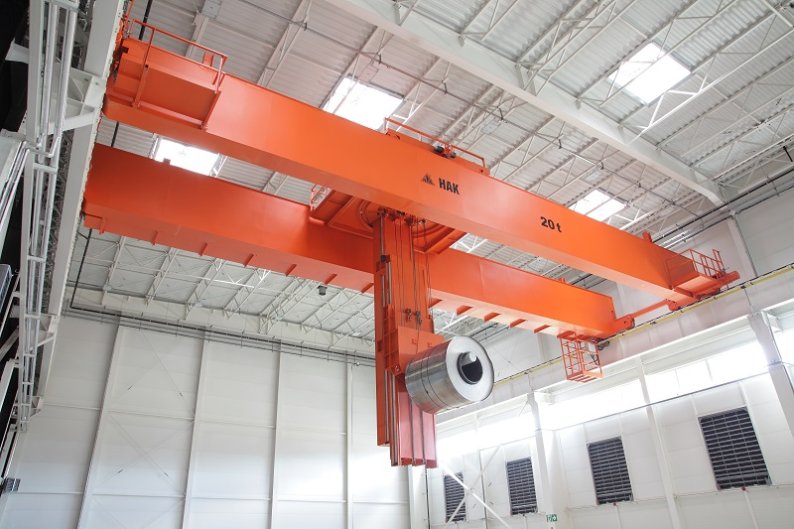

The coil transport manipulator is designed to streamline the transport and handling of various types of coils during production and storage activities. It is constructed based on a dual-girder overhead crane, equipped with a manipulator in the form of a rigid column mounted on a rotary head, which enables stable lifting and lowering of the load. An additional enhancement is the semi-automatic operation system, which involves programming the device with specific movement sequences and stopping at precisely defined positions.

FEATURES OF THE ROTARY MANIPULATOR FOR COIL TRANSPORT

• the system is based on a dual-girder overhead crane design,
• the device is equipped with a manipulator in the form of a column, ending with a component that enables picking up the coil from the storage area,
• the manipulator's column is mounted on a rotary head, which further enhances its load manipulation capabilities,
• the manipulator's design allows for handling coils and spools with different hole diameters,
• the operation of the device is controlled remotely,
• the system can be customized in various size configurations.

BENEFITS OF USING THE SYSTEM

• increased efficiency of transport processes,
• effective grabbing and stable movement of the load, both vertically and horizontally,
• enhanced precision in load positioning,
• automation of the process within specified ranges,
• increased work safety.

APPLICATION

• in the transport of steel coils,
• in the transport of loads in the form of coils and spools with grabbing holes.
