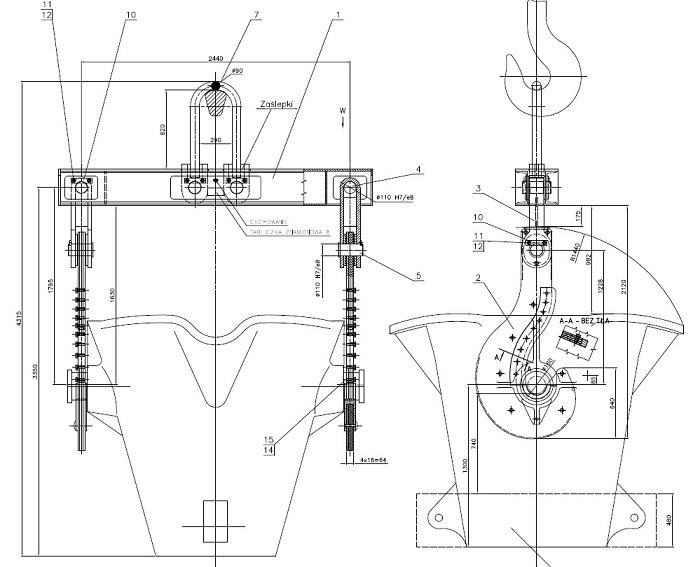

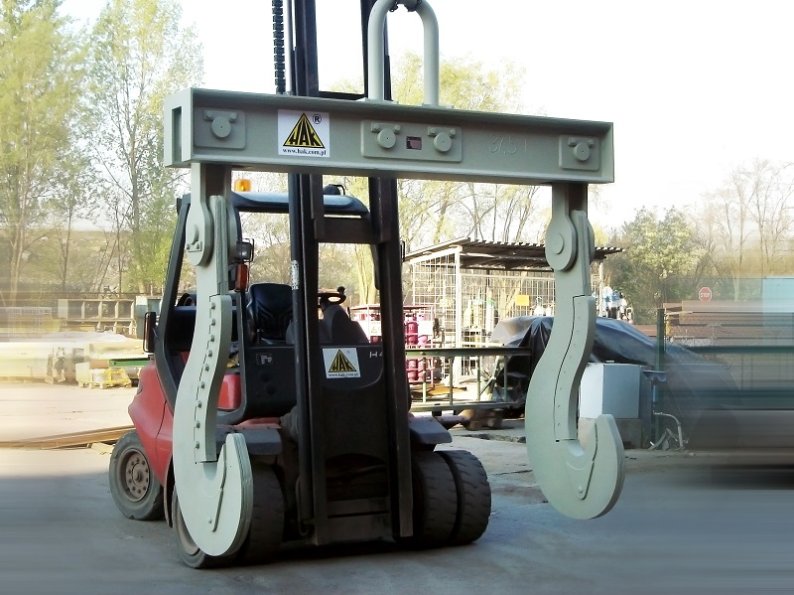

The spreader beam is designed to be suspended from a crane hook. The load (ladle) is suspended on hooks by its trunnions. This suspension allows for the tilting of the ladle and the pouring of metal. The presented device is an example of a special technical solution, designed and manufactured for specific requirements.
Applications:
Parameters |
*Photo |
Range |
| Load capacity | 37 500 kg | as required |
| Hook spacing | 2 440 mm | as required |
| Trunnion diameter | 160 mm | as required |
| Purpose | transport of ladles with contents | - |
| Catalog number | WR080113 |
The spreader beam is designed to be suspended from a crane hook. The load (ladle) is suspended on hooks by its trunnions. This suspension allows for the tilting of the ladle and the pouring of metal. The presented device is an example of a special technical solution, designed and manufactured for specific requirements.
Applications:
Technical Description:
