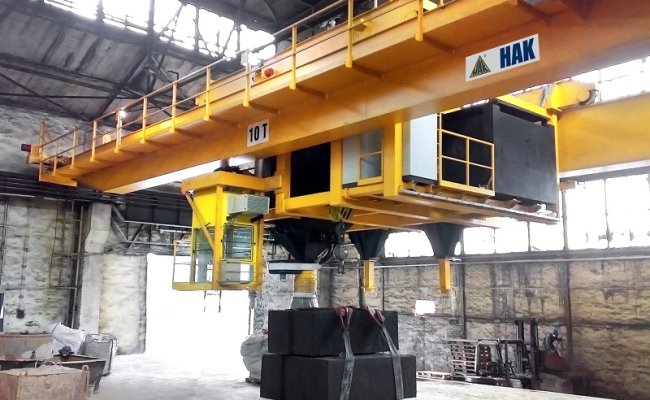

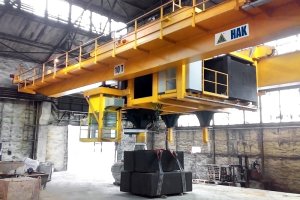

Crane in a graphite electrode factory

The crane is designed for removing hot charge from the furnace in the production process of carbon electrodes. The double-girder crane moves along a specially built track. The crane is operated from a platform mounted between the crane's girders.

Applications:

Handling processes requiring suction, vacuuming, and feeding of bulk materials

Call us

Find a branch

Print

Parameters	*Photo	Range
Load capacity	10 000 kg	as required
GNP	A6	as required
Span	24 000 mm	as required
Crane travel speed	0 - 60 m/min	as required
Hoist lifting height	9 500 mm	as required
Hoist lifting speed	0 - 10 m/min	as required
Hoist trolley travel speed	0 - 36 m/min	as required
Purpose	handling processes for suction, vacuuming	-
Catalog number	WR073031

Industrial crane with suction equipment

The crane is designed for removing hot charge from the furnace in the production process of carbon electrodes. The double-girder crane moves along a specially built track. The crane is operated from a platform mounted between the crane's girders.

Applications:

handling processes requiring suction, vacuuming, and feeding of bulk materials.

Technical Description:

double-girder crane with a box construction, equipped with suction apparatus on the trolley,
the suction apparatus allows for the removal of hot charge from the furnace via a suction pipe and a high-efficiency compressor,
hot charge is transported in the apparatus's tank and placed (discharged) into a designated tank for cooling and reuse,
tanks for hot charge are made of heat-resistant steel,
integration of the technological suction apparatus with the crane structure allows for optimal use of the hall's space,
parameters can be adjusted to meet user-specific needs.
