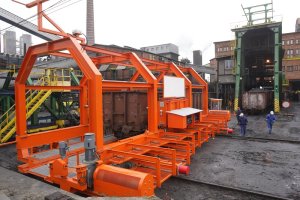

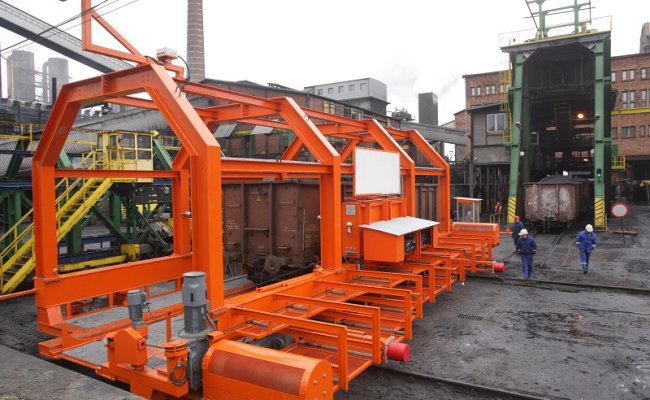

Shifting Device for Transporting Coke Railcars

The shifting device is designed for rail vehicles. It has a lifting capacity of 100 tons and is powered by a conductor rail. The loading of materials onto the shifting device is done using a rope winch. This device is an example of a specialized technical solution designed and manufactured for specific conditions.

Applications:

The platform is intended for the transverse movement of coke railcars from feeding tracks to a track with a tippler within coke plant facilities.

Call us

Find a branch

Print

Parameters	*Photo	Range
Load capacity	100 000 kg	as required
Length	15 000 mm	as required
Travel speed	max. 40 m/min	as required
Power supply	gear motor	as required
Control method	radio or control panel	as required
Track type	rails	as required
Purpose	transverse transport of loaded railcars	-
Catalog number	WR102336

Shifting Device for Transporting Coke Railcars

The shifting device is designed for rail vehicles. It has a lifting capacity of 100 tons and is powered by a conductor rail. The loading of materials onto the shifting device is done using a rope winch. This device is an example of a specialized technical solution designed and manufactured for specific conditions.

Applications:

The platform is intended for the transverse movement of coke railcars from feeding tracks to a track with a tippler within coke plant facilities.

Technical Description:

The provided parameters can be adjusted to meet the user's needs.
