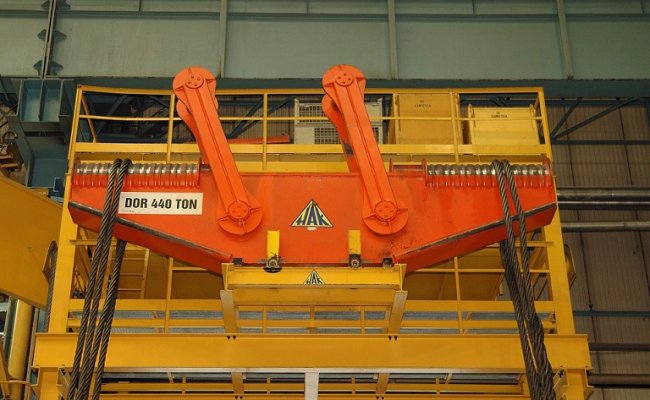

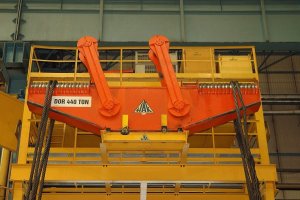

The lifting beam is designed to be suspended from a crane with a two-point hook. It is equipped with a semi-automatic pin spacing mechanism and an automatic load balancing system. The lifting beam features an adjustable pin spacing of 9 300 mm ± 300 mm and an imbalance adjustment range of ± 200 mm. This device represents a specialized technical solution tailored to specific conditions.
Parameters |
*Photo |
Range |
| Load capacity | 185 000 kg | as required |
| Dimensions | 10 500 x 2 275 x 3 200 mm | as required |
| Purpose | transport of turbine rotors | - |
| Catalog number | GD100994 |
The lifting beam is designed to be suspended from a crane with a two-point hook. It is equipped with a semi-automatic pin spacing mechanism and an automatic load balancing system. The lifting beam features an adjustable pin spacing of 9 300 mm ± 300 mm and an imbalance adjustment range of ± 200 mm. This device represents a specialized technical solution tailored to specific conditions.
