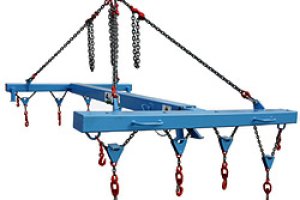

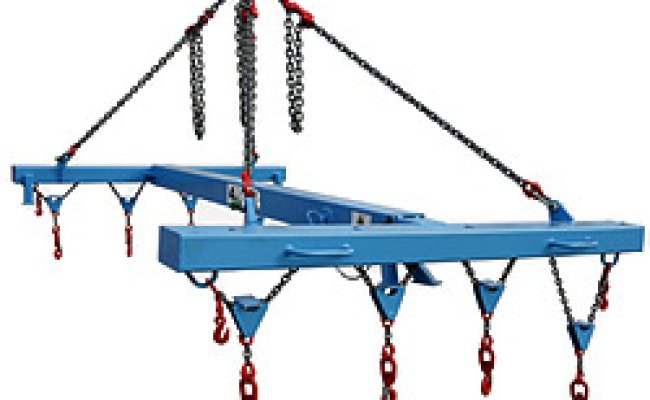

Lifting beam for filigree floor slabs

The lifting beam features an adjustable length with a fixed width and a system for adjusting the horizontal load. It is equipped with high-strength chains and hooks. The chains include shortenings, allowing the use of as many hooks as required. Four load attachment points provide excellent stability during handling. Additionally, the lifting beam is equipped with grips (two on each side) to facilitate precise positioning over the load.

Purpose:

Transport of filigree floor slabs.

Call us

Find a branch

Print

Parameters	TRF 3000x2110/3,5	TRF 3000x2600/3,5	TRF 4550x2110/3,5	TRF 5500x2110/3,5
Load capacity [kg]	3 500	3 500	3 500	3 500
L [mm]	1 950 - 3 000	1 950 - 3 000	3 500 - 4 550	3 200 - 5 500
B [mm]	2 110	2 600	2 110	2 110
H [mm]	2 120 - 2 520	1 990 - 2 375	2 950 - 3 350	3 610 - 2 660
Weight [kg]	320	320	350	420
